Product Description

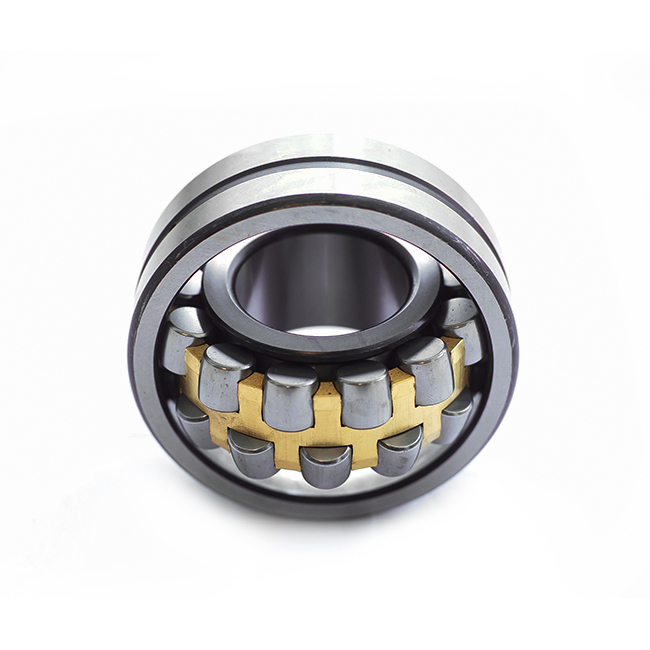

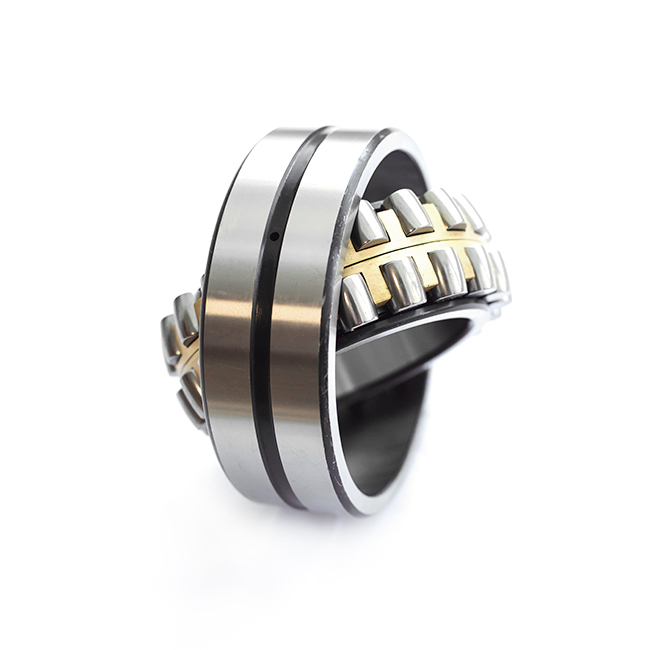

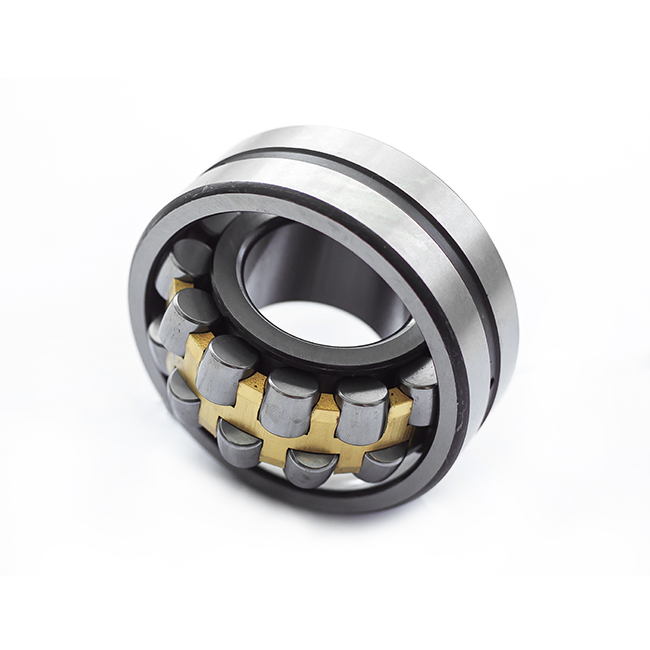

22330MB 22330MBK 150* 320 *108mm Spherical roller bearing
Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for spherical roller bearings.
| Attributes | Values |
| Part Number | 22330MB Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 150mm |
| Outer Dia (D) | 320mm |
| Width (B) | 108mm |
| Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
| Dynamic Load Rating (Cr) (Newtons) | 41000 |
| Static Load Rating (Cor) (Newtons) | 51000 |
| Brand | NKS |
| Clearance | C2,C0,C3,C4,C5 |
| Weight | 18kg |
| Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
