Product Description

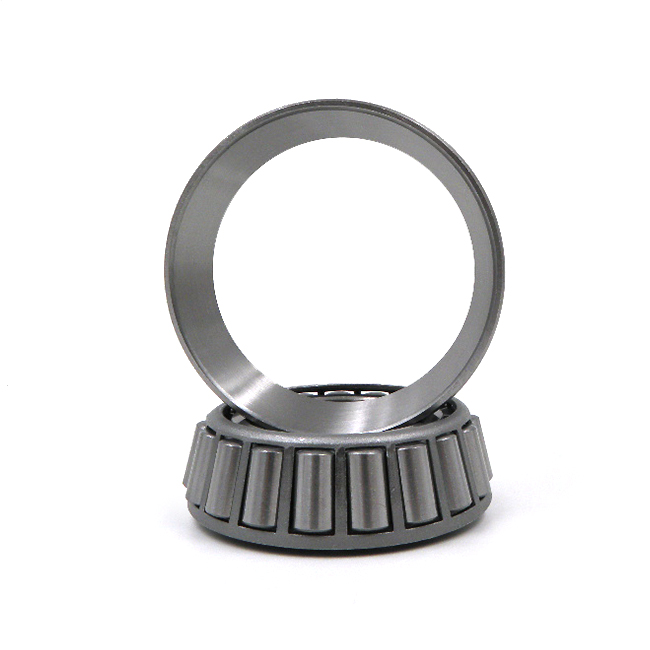

2684/2631 inch tapered roller bearing 22.225*6.421*25.433mm
2684/2631 Sealed Bearing is a popular size that could be used in many applications,
2684/2631 Bearings is made of Chrome Steel and the bearing is pre-lubricated with grease.
| Attributes | Values |
| Part Number | 2684/2631 Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 22.225mm |
| Outer Dia (D) | 66.421mm |
| Width | 25.433mm |
| Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
| inner ring (T) | 23.812mm |
| out ring (C ) | 19.050mm |
| Brand | NKS |
| Clearance | C2,C0,C3,C4,C5 |
| Weight (kg) (grams) | 0.46kg |
| Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
|
