32009X
NKS
8482 200000
Product Description
NKS Tapered Roller Bearing 32009X

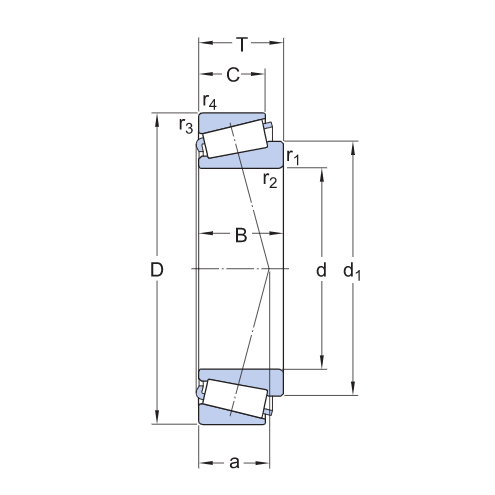

| d | 45 mm | Bore diameter |
|---|---|---|
| D | 75 mm | Outside diameter |
| T | 20 mm | Total width |
| d1 | ≈ 60.73 mm | Shoulder diameter of inner ring |
| B | 20 mm | Width of inner ring |
| C | 15.5 mm | Width of outer ring |
| r1,2 | min. 1 mm | Chamfer dimension of inner ring |
| r3,4 | min. 1 mm | Chamfer dimension of outer ring |
| a | 16.3 mm | Distance side face to pressure point |
Tapered roller bearings 32009X is designed to accommodate combined radial and axial loads and provide low friction during operation,special used for auto front wheel.
Nexans bearing 32009X is made of good quality material chrome steel Gcr15, precision up to P6.
Nexans bearing persist in the concept of "quality important, service first", the company will provide excellent service in the premise of insuring quality to win good appraise.
NEXANS BEARING EXPECT OUR LONG TERM COOPERATION
