Product Description

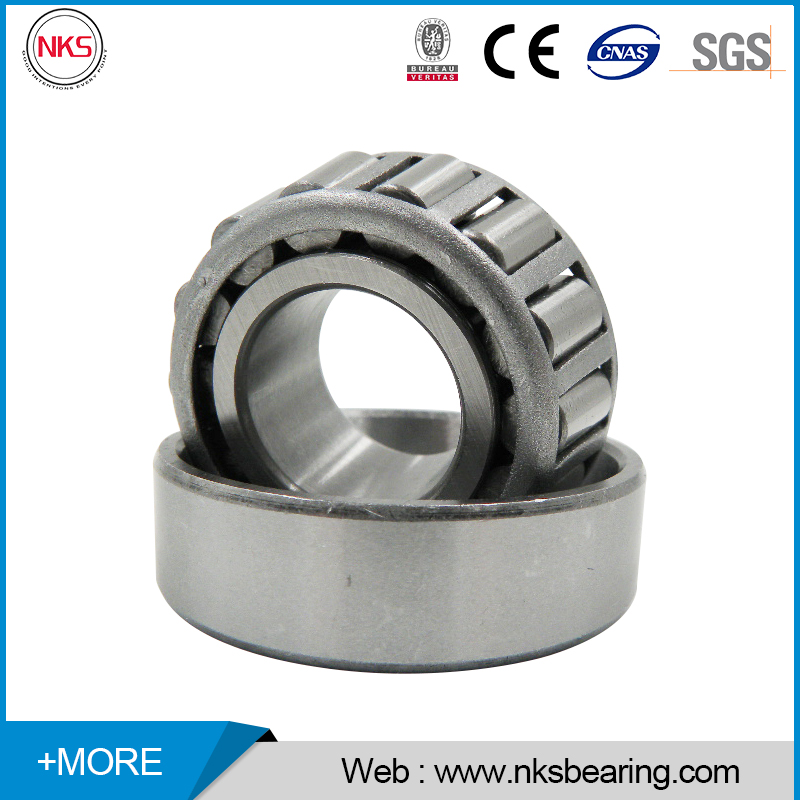

32309 Single row tapered roller bearing 45*100*38.25.
Data Sheet:
Bearing Type:Single row Tapered roller bearing.
Bearing item:7609,32309.
Bearing Dimension(mm):d:45mm,D:100mm,T:38.25,B:36.
Weight:1.4kg.
Raw materia:Gcr-15,Chrome steel.
| Bearing | Principal Dimensions (mm) | Masskg | |||||
| d | D | T | B | C | |||
| 32303 | 17 | 47 | 20.25 | 19 | 16 | 0.17 | Taper Roller Bearing |
| 32304 | 20 | 52 | 22.25 | 21 | 18 | 0.23 | Taper Roller Bearing |
| 32305 | 25 | 62 | 25.25 | 24 | 20 | 0.36 | Taper Roller Bearing |
| 32306 | 30 | 72 | 28.75 | 27 | 23 | 0.55 | Taper Roller Bearing |
| 32307 | 35 | 80 | 32.75 | 31 | 25 | 0.73 | Taper Roller Bearing |
| 32308 | 40 | 90 | 35.25 | 33 | 27 | 1 | Taper Roller Bearing |
| 32309 | 45 | 100 | 38.25 | 36 | 30 | 1.35 | Taper Roller Bearing |
| 32310 | 50 | 110 | 42.25 | 40 | 33 | 1.8 | Taper Roller Bearing |
| 32311 | 55 | 120 | 45.5 | 43 | 35 | 2.5 | Taper Roller Bearing |
| 32312 | 60 | 130 | 48.5 | 46 | 37 | 2.8 | Taper Roller Bearing |
| 32313 | 65 | 140 | 51 | 48 | 39 | 4.3 | Taper Roller Bearing |
| 32314 | 70 | 150 | 54 | 51 | 42 | 4.25 | Taper Roller Bearing |
| 32315 | 75 | 160 | 58 | 55 | 45 | 5.55 | Taper Roller Bearing |
| 32316 | 80 | 170 | 61.5 | 58 | 48 | 6.2 | Taper Roller Bearing |
| 32317 | 85 | 180 | 63.5 | 60 | 49 | 7.5 | Taper Roller Bearing |
| 32318 | 90 | 190 | 67.5 | 64 | 53 | 8.4 | Taper Roller Bearing |
| 32319 | 95 | 200 | 71.5 | 67 | 55 | 11 | Taper Roller Bearing |
| 32320 | 100 | 215 | 77.5 | 73 | 60 | 12.5 | Taper Roller Bearing |
| 32321 | 105 | 225 | 81.5 | 77 | 63 | 14.5 | Taper Roller Bearing |
| 32322 | 110 | 240 | 84.5 | 80 | 65 | 17 | Taper Roller Bearing |
| 32324 | 120 | 260 | 90.5 | 86 | 69 | 21.5 | Taper Roller Bearing |
| 32326 | 130 | 280 | 98.75 | 93 | 78 | 30.5 | Taper Roller Bearing |
| 32328 | 140 | 300 | 107.75 | 102 | 85 | 37.8 | Taper Roller Bearing |
| 32330 | 150 | 320 | 114 | 108 | 90 | 46 | Taper Roller Bearing |
| 32332 | 160 | 340 | 121 | 114 | 95 | 50 | Taper Roller Beari |
