Product Description

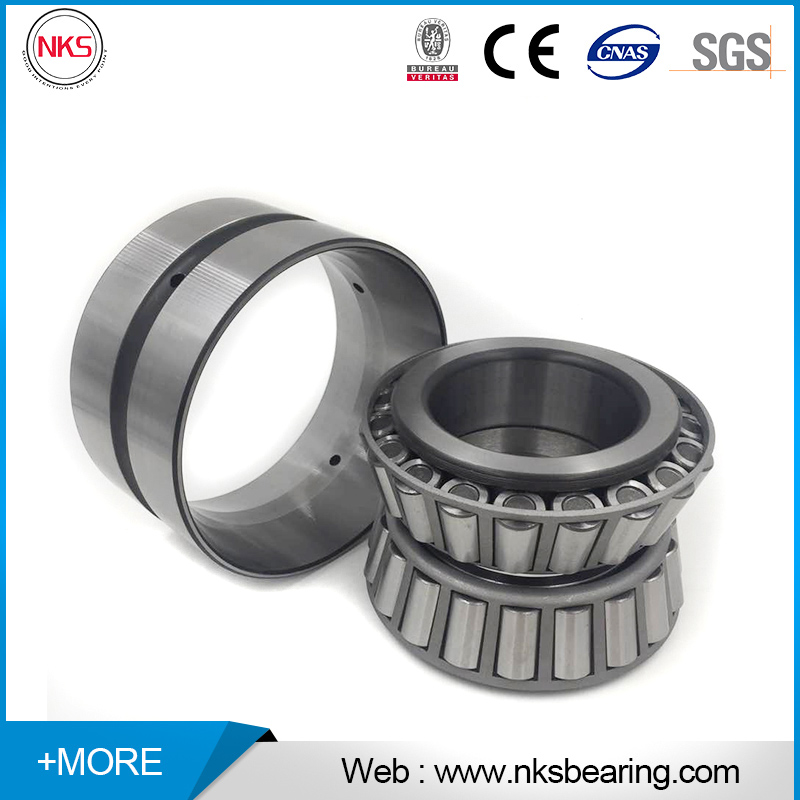

352138 2097738 190*320 *170mm double tapered roller bearing
double tapered roller bearing are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for double tapered roller bearing
| Attributes | Values |
| Part Number | 352138 Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 190mm |
| Outer Dia (D) | 320mm |
| Width (B) | 170mm |
| Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
| Dynamic Load Rating (Cr) (Newtons) | 41000 |
| Static Load Rating (Cor) (Newtons) | 51000 |
| Brand | NKS |
| Clearance | C2,C0,C3,C4,C5 |
| Weight | 52kg |
| Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
