Product Description

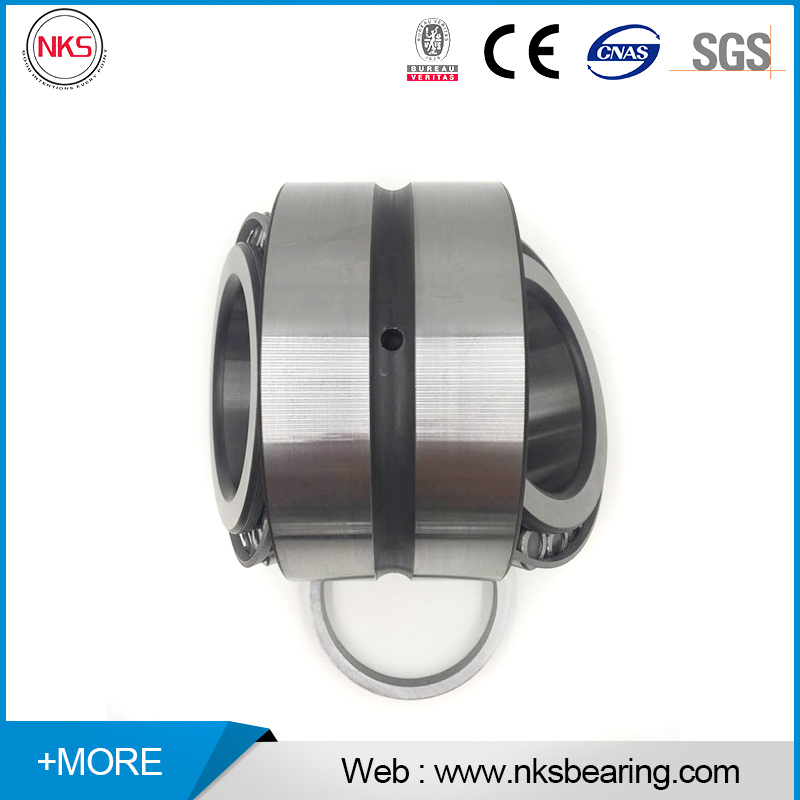

The 352216 (GOST current designation) is a Double Row Tapered Roller Bearing with boundary dimensions of 80×140×80mm, featuring a dynamic load rating of 320 kN and static load rating of 315 kN, with limiting speeds of 1,800 rpm (grease) / 2,400 rpm (oil) — the highest oil-lubrication speed rating in the 3522xx series.
Cross-referenced as 97516E under the original GOST designation system, this bearing belongs to the heavy-duty 3522xx series and is specifically engineered for the most demanding industrial environments — including applications with severe misalignment, contamination, vibration, and impact loading.
The 352216 stands out within the 3522xx family for its perfectly square cross-section (B = d = 80mm, B/d = 1.000) — shared only with the 352217 — and its 2,400 rpm oil-lubrication speed, the highest in the entire series. At only 4.97 kg, it is the absolute lightest member of the 3522xx family, making it the premier choice for compact, high-speed, high-load 80mm shaft applications where installation space, weight, and rotational speed are all critical constraints.
Parameter | Value |
Part Number (Current) | 352216 |
Cross Reference | 97516E |
Bearing Type | Double Row Tapered Roller Bearing |
Bore Diameter (d) | 80 mm |
Outer Diameter (D) | 140 mm |
Width (B) | 80 mm |
Dynamic Load Rating (Cr) | 320 kN |
Static Load Rating (Cor) | 315 kN |
Cor/Cr Ratio | 0.984 |
Limiting Speed (Grease) | 1,800 r/min |
Limiting Speed (Oil) | 2,400 r/min |
Weight | 4.97 kg |
Material | GCr15 / 52100 / 100Cr16 / SUJ2 Chrome Steel |
Seal Type | Open / Shielded / Sealed (available) |
Clearance | C0, C2, C3, C4, C5 |
Precision Grade | ABEC 1/3/5/7/9；DIN620 P0/P6/P5/P4/P2 |
Brand | NKS / NEXANS / OEM available |
✅ Double Row Tapered Roller Design — Simultaneously handles heavy radial loads AND bidirectional axial loads, ideal for shaft applications with combined loading
✅ Cr=320kN / Cor=315kN — Balanced radial and axial load capacity with near-unity Cor/Cr ratio (0.984), optimized for applications with balanced combined loading rather than pure shock resistance
✅ Perfectly Square Cross-Section (B=d=80mm, B/d=1.000) — Symmetrical geometry simplifies housing design, provides balanced load distribution across both roller rows, and minimizes axial installation space
✅ 80mm Bore / 140mm OD / 80mm Wide — Ultra-compact envelope ideal for space-constrained 80mm shaft installations requiring high load capacity at high speeds
✅ 1,800/2,400 rpm Limiting Speed — Highest oil-lubrication speed (2,400 rpm) in the entire 3522xx series, suitable for the most speed-critical heavy-duty applications
✅ Absolute Lightest at 4.97 kg — Lightest member of the entire 3522xx family, enabling the easiest handling, installation, and maintenance
✅ 52100 / GCr15 Premium Chrome Steel — High-grade bearing steel offering exceptional hardness (HRC 60–65), wear resistance, and fatigue life under extreme loading
✅ Severe-Duty Engineered — Designed specifically for high loads, severe misalignment, contaminated environments, shocks, and vibrations per GOST heavy-duty standards
✅ Multi-Clearance & Precision Options — C0~C5 clearance and P0~P2 precision grades available to suit diverse application requirements
✅ Open / Shielded / Sealed Variants — Flexible sealing configurations for clean, dusty, or wet operating environments
✅ Full Interchangeability — Compatible with SKF, FAG, Timken, NSK same-dimension equivalents for seamless maintenance replacement
Based on the bearing's 80mm bore, 320kN dynamic load rating, near-unity Cor/Cr ratio, highest speed capability in the series, and heavy-duty GOST-series construction:
Industry | Application |
Metallurgy / Steel Mills | Rolling mill roll neck bearings, high-speed reducer output shafts |
Mining Equipment | Crusher main shafts, ball mill trunnion supports |
Heavy Gearboxes | Industrial gearbox primary/output shafts, high-speed multi-stage reducers |
Power Generation | Turbine auxiliary equipment, generator shaft supports |
Cement Industry | Rotary kiln support rollers, raw mill & cement mill drives |
Heavy Construction | Crane main hoisting gear, large excavator swing drives |
Paper & Pulp | High-speed drive roll shafts in contaminated/wet environments |
Designation System | Part Number |
GOST Current | 352216 |
GOST Original | 97516E |
Material Equivalent | 52100 (AISI) / 100Cr16 (DIN) / SUJ2 (JIS) / GCr15 (GB) |
Interchangeable With | SKF, FAG, Timken, NSK same-dimension equivalents |
The 352216 is the absolute lightest, most compact, and highest oil-speed member of the 3522xx heavy-duty series — the ideal entry point for 80mm shaft applications requiring the ultimate combination of compactness, speed, and heavy-duty load capacity:
Model | d × D × B | B/d Ratio | Cr | Cor | Speed Grease/Oil | Weight |
352216 | 80×140×80mm | 1.000 | 320 kN | 315 kN | 1,800/2,400 rpm | 4.97 kg |
352217 | 85×150×85mm | 1.000 | 410 kN | 510 kN | 1,700/2,000 rpm | 5.67 kg |
352218 | 90×160×95mm | 1.056 | 410 kN | 510 kN | 1,600/1,900 rpm | 7.46 kg |
352219 | 95×170×100mm | 1.053 | 410 kN | 510 kN | 1,500/1,700 rpm | 9.02 kg |
352220 | 100×180×112mm | 1.120 | 410 kN | 510 kN | 1,200/1,600 rpm | ~11.5 kg |
352222 | 110×200×125mm | 1.136 | 410 kN | 510 kN | 1,100/— rpm | 16.4 kg |
352224 | 120×211×132mm | 1.100 | 410 kN | 510 kN | 1,000/— rpm | 19.1 kg |
352226 | 130×230×150mm | 1.154 | 410 kN | 510 kN | 950/— rpm | 26.5 kg |
352228 | 140×250×158mm | 1.129 | 410 kN | 510 kN | 850/— rpm | 30.6 kg |
352230 | 150×270×170mm | 1.133 | 410 kN | 510 kN | —/— rpm | 40.4 kg |
2352232 | 160×290×180mm | 1.125 | 410 kN | 510 kN | —/— rpm | 46.2 kg |
352236 | 180×320×190mm | 1.056 | 410 kN | 510 kN | —/— rpm | 62.7 kg |
