67512
OEM
Product Description
Model No. | 67512 |
Dimensions(mm) | 60X110X29.75 |
Weight | 1.194kg |
Inner ring width [mm] | 29.75 |
C-outer ring width [mm] | 24.5 |
D1 - flange diameter [mm] | 117 |
T [mm] | 29.75 |
Type | SIngle row tapered roller bearing with flange |
Application | Automobile |
Packing | Industiral packing/single box+carton+pallets |
Country of origion | China |

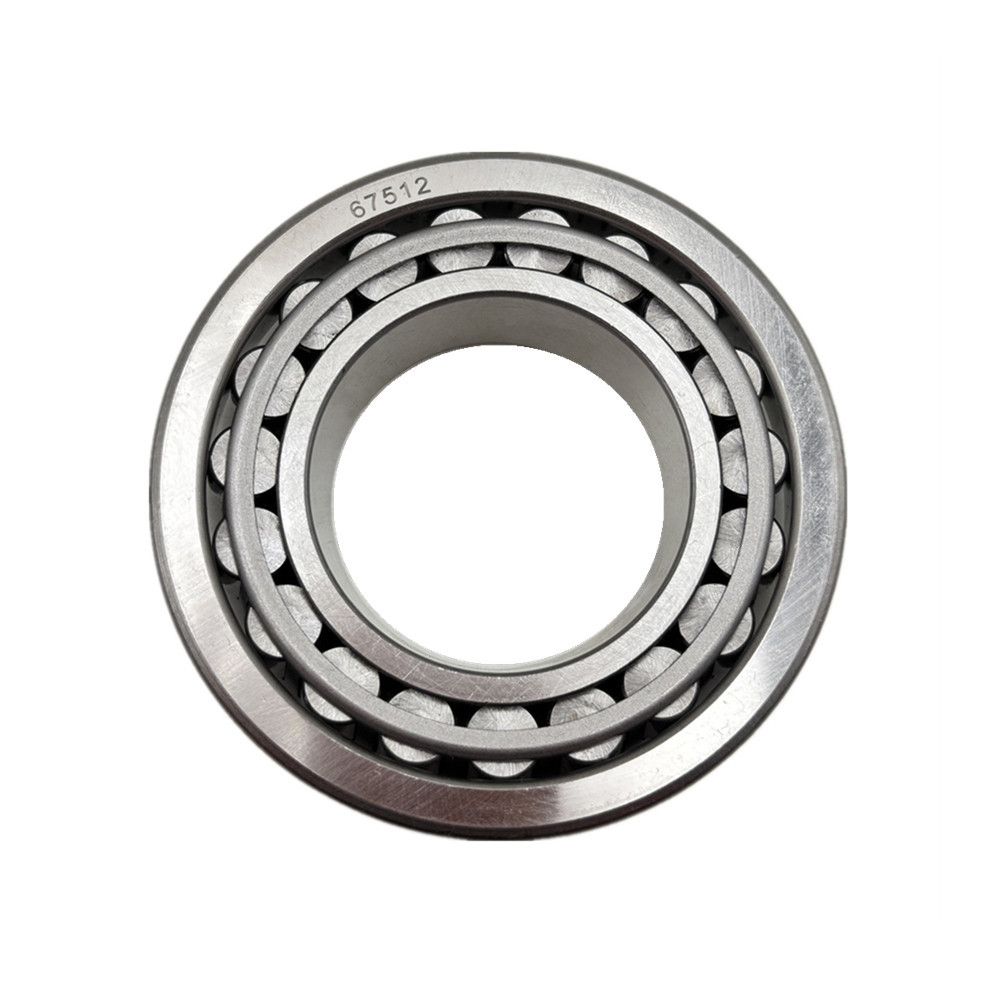

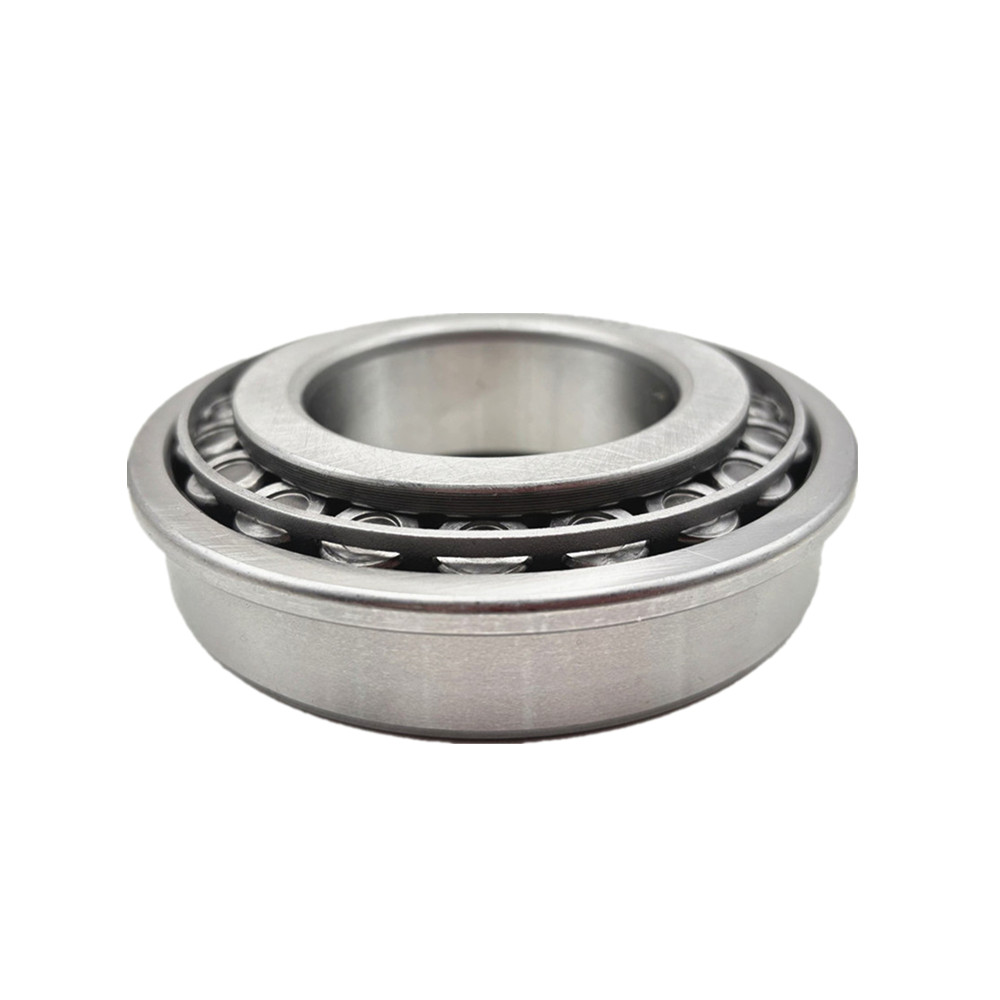

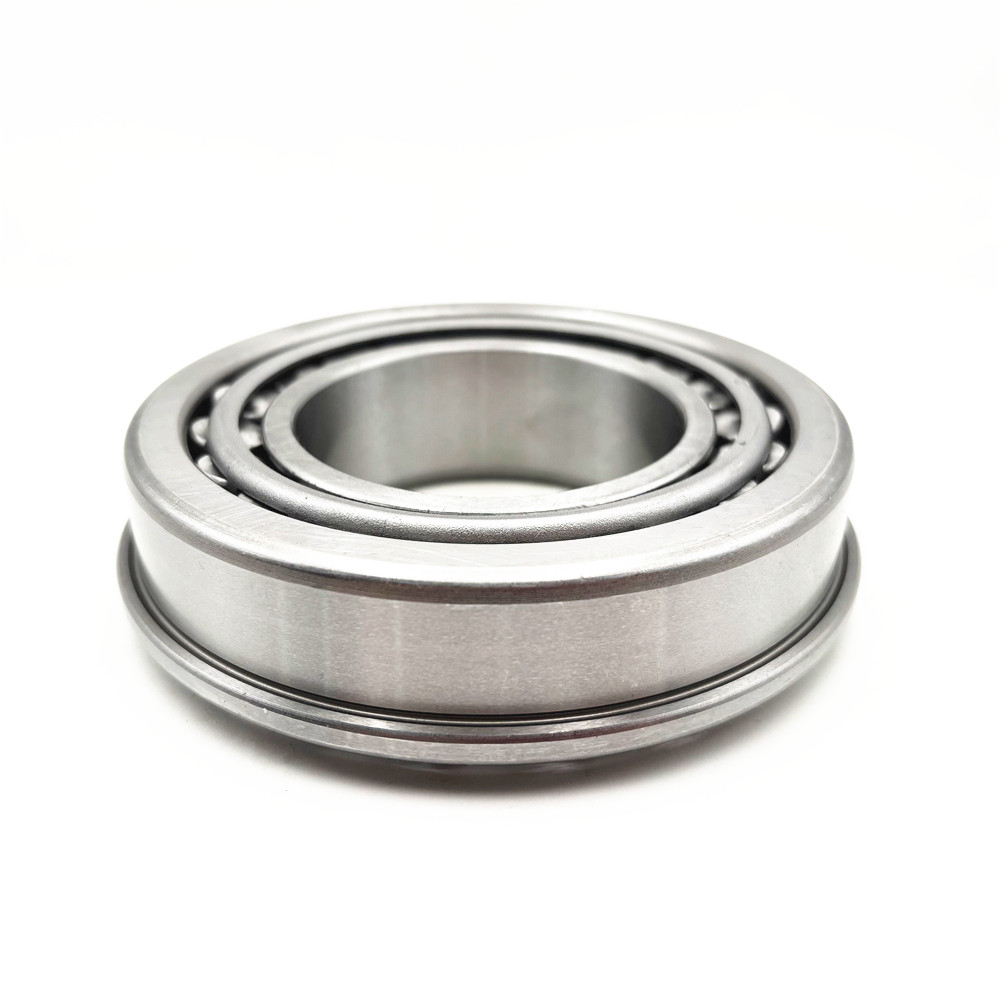

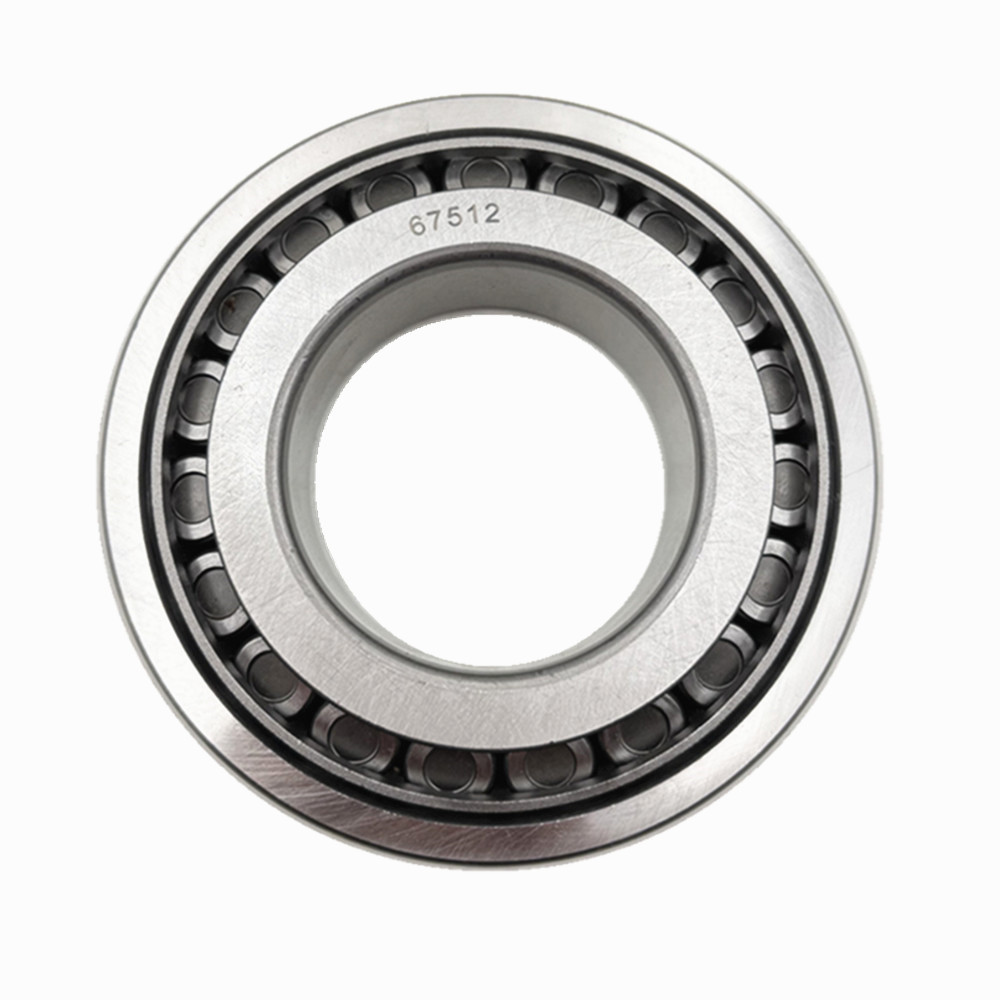

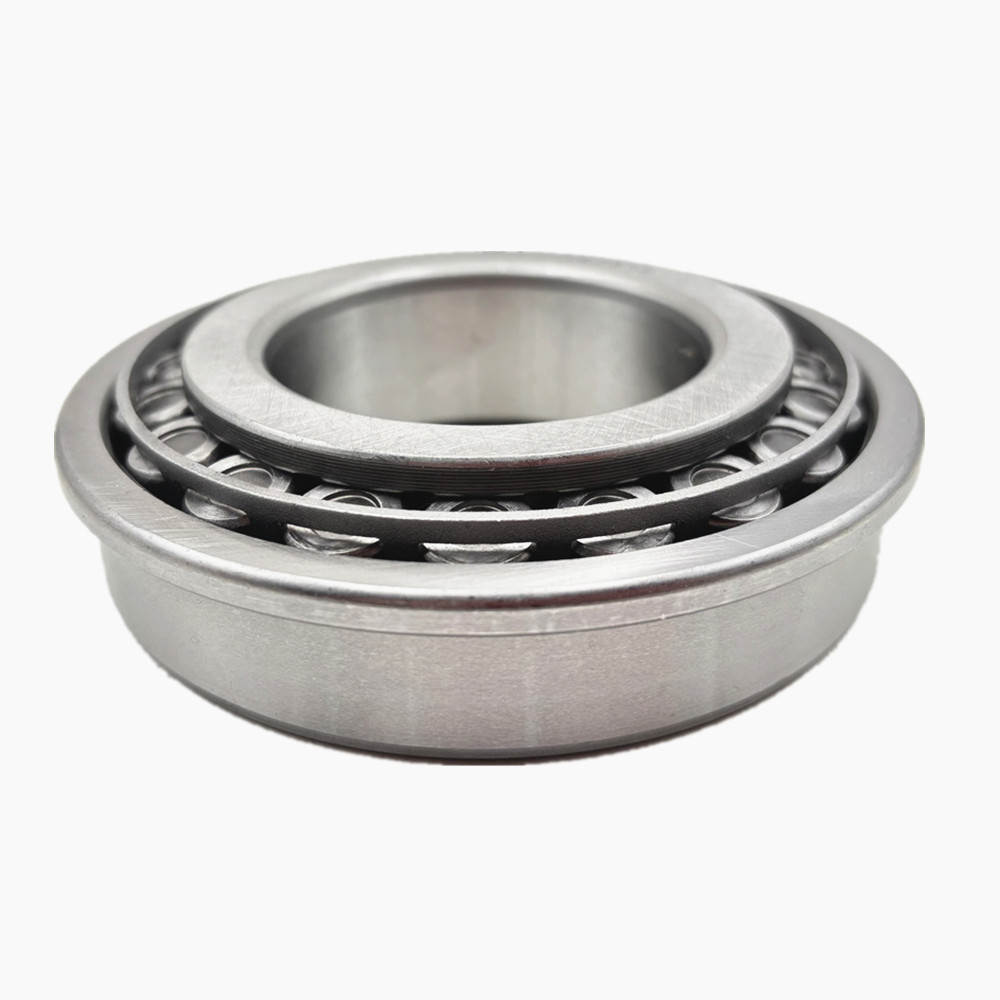

Bearing 67512 is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical.Thiis design allows these versatile bearings to accommodate combined loads.They support high radial and axial loads (ine one direction).The greater the contact angle,the greater the axial load capacity.

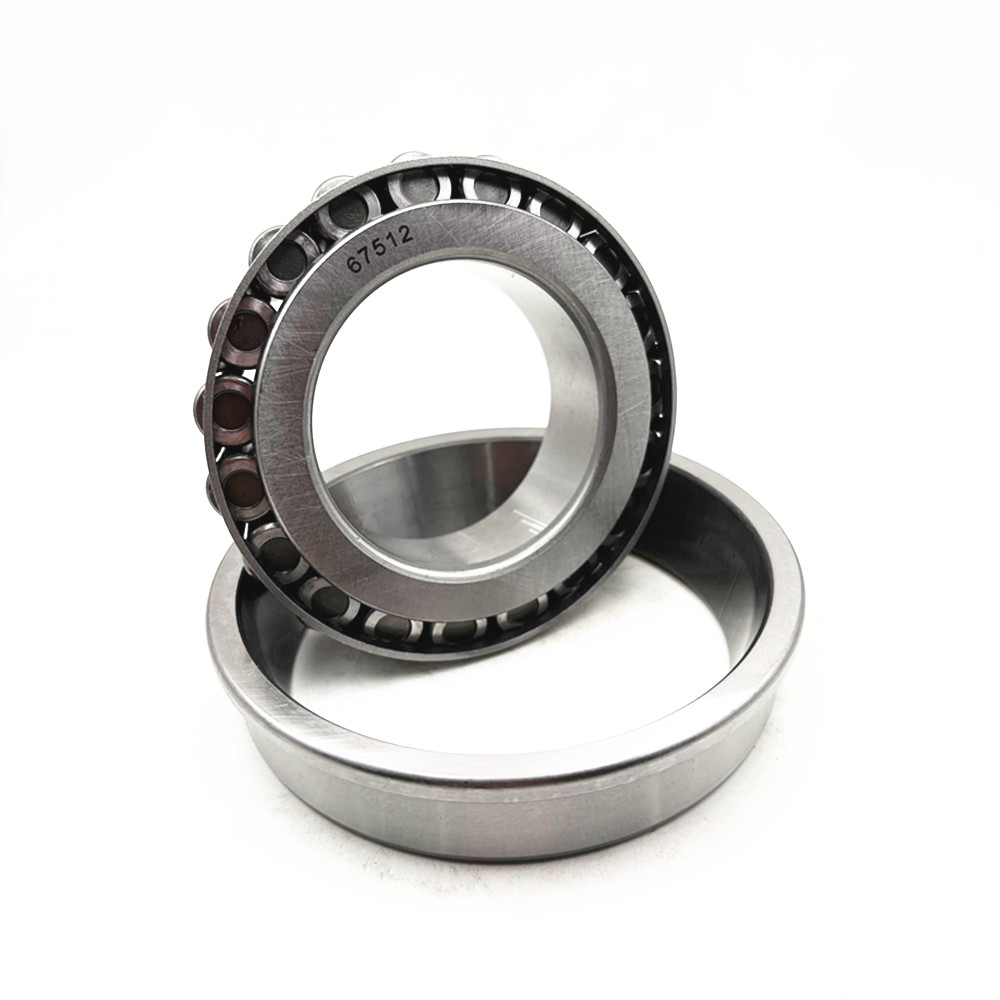

It is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consisits of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be monunted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
