Product Description

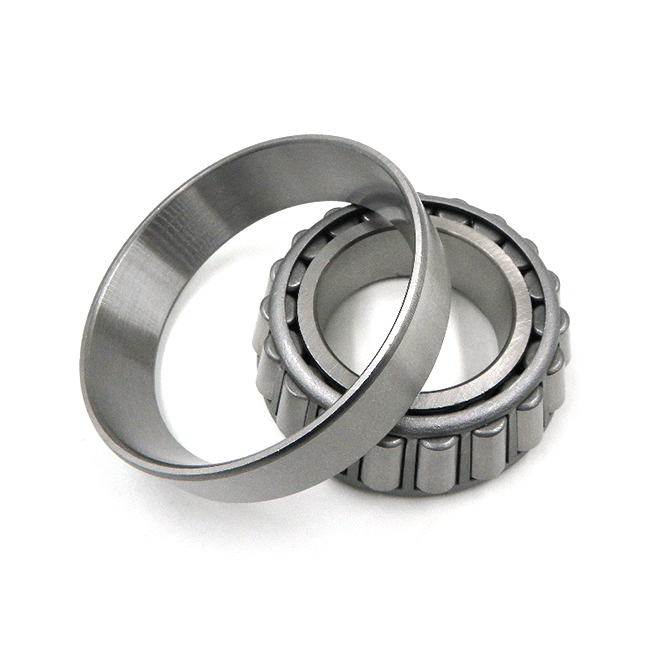

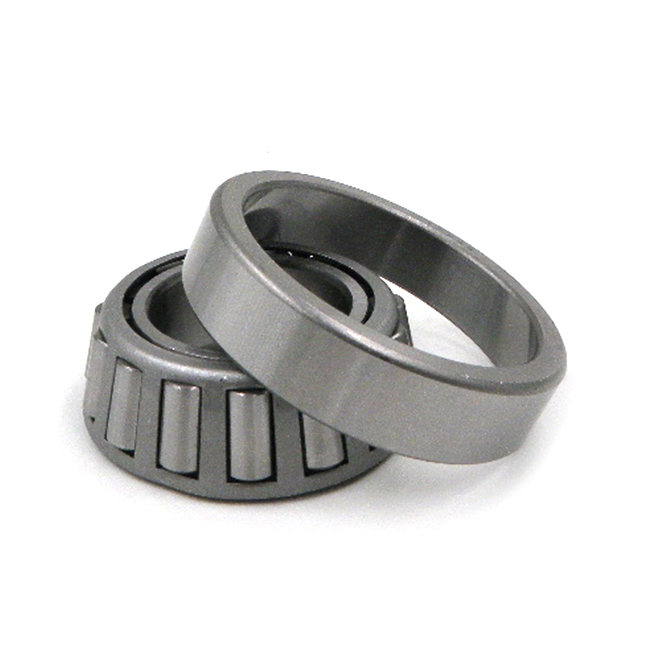

HM252344/HM252310 inch tapered roller bearing 254.000*422.275*79.771 mm
HM252344/HM252310 Bearings have rubber seals that contact both the inner and outer race of the bearing; this prevents moisture and dust from damaging the bearing.
HM252344/HM252310 Sealed Bearing is a popular size that could be used in many applications, HM252344/HM252310 Bearings is made of Chrome Steel and the bearing is pre-lubricated with grease.
| Attributes | Values |
| Part Number | HM252344/HM252310 Bearing |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 254.000mm |
| Outer Dia (D) | 422.275mm |
| Width (B) | 79.771mm |
| Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
| inner ring (T) | 86.121mm |
| out ring (C) | 66.675mm |
| Brand | NKS |
| Clearance | C2,C0,C3,C4,C5 |
| Weight (kg) (grams) | 40.16kg |
| Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
