To choose a tapered roller bearing, confirm the radial and axial loads, bearing arrangement, operating speed, shaft and housing fits, and required mounted setting. Then check the exact dimensions, bearing designation, lubrication method, and installation procedure. A matching part number or set of basic dimensions is a starting point—not proof that a bearing is suitable for the application.
Tapered roller bearings are commonly used where radial and axial loads act together. Their design makes them relevant to many wheel-end assemblies, gearboxes, and industrial machines, but performance depends on more than the bearing itself. Arrangement, mounting, lubrication, and operating conditions all matter.
This guide explains what buyers should check before sourcing tapered roller bearings for replacement, OEM, or bulk purchasing programs. To review product options, visit the Nexans Bearing product catalog.

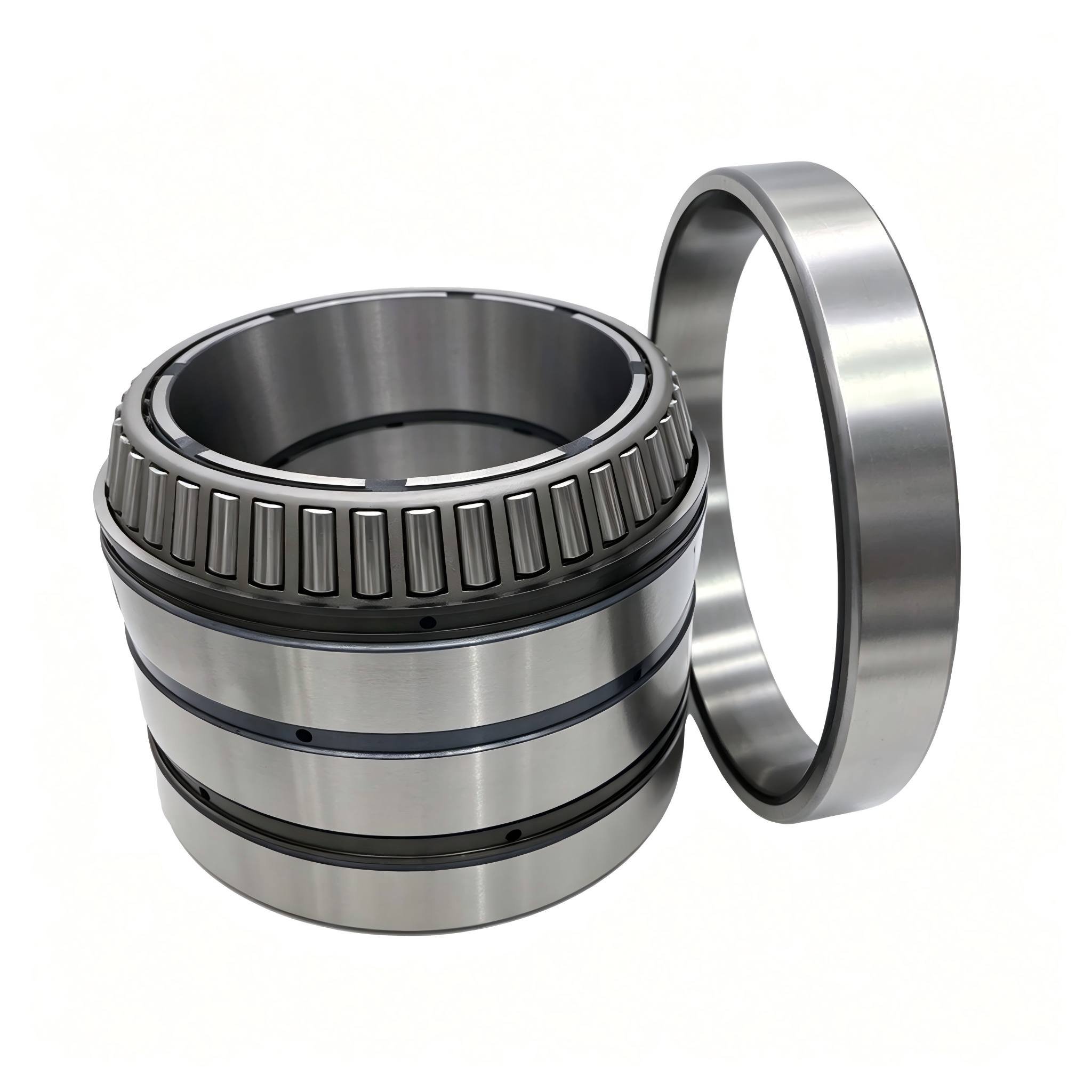

A tapered roller bearing has tapered rolling elements and raceways. This geometry allows it to carry combined radial and axial loads. A typical single-row tapered roller bearing consists of a cone assembly and a cup.
A single-row bearing carries axial load primarily in one direction. Where loads act in both axial directions, the machine design may use two bearings in an appropriate arrangement or another application-specific solution.
Because tapered roller bearings are often assembled as part of a bearing system, buyers should confirm both the bearing components and their installed arrangement. Do not select a replacement from bore diameter, outside diameter, and width alone.
Selection item | What the buyer should confirm |
Application | Wheel hub, axle, gearbox shaft, industrial machine, or other position |
Reference | Full bearing designation, OEM number, drawing, or approved sample |
Loads | Radial load, axial load direction, shock load, and duty cycle |
Dimensions | Bore, outside diameter, widths, and relevant mounting features |
Arrangement | Single bearing, opposed pair, or application-specific assembly |
Mounted setting | Required endplay, clearance, or preload according to the equipment design |
Fits | Shaft and housing dimensions and installation method |
Speed | Normal and maximum operating speed |
Lubrication | Grease or oil type, supply method, and maintenance interval |
Environment | Heat, water, dust, vibration, or contamination |
Order requirements | Quantity, packaging, labeling, and delivery destination |
If the mounted setting or arrangement is unknown, identify the equipment model and bearing position before approving a substitute.
Tapered roller bearings are selected partly because they can support combined loads. However, the direction and magnitude of the axial load must still be understood.
Start by asking:
What equipment uses the bearing?
Is the bearing installed in a wheel end, gearbox, axle, or industrial shaft?
Does axial load act in one direction or reverse during operation?
Are shock loads, vibration, or frequent starts and stops expected?
Is the bearing part of a paired arrangement?
For example, a bearing in a vehicle wheel end operates within a hub assembly and follows an application-specific installation procedure. A bearing in a gearbox may be part of a shaft-locating arrangement with different lubrication and temperature conditions. The same general bearing type does not make the two applications interchangeable.
Before requesting a quotation, record the complete designation from the existing bearing, equipment documentation, or approved drawing.
Depending on the product and identification system, the cone and cup may be identified separately. A buyer replacing an existing set should confirm that the proposed components match the required combination rather than assuming that similarly sized parts can be mixed.
Useful reference materials include:
the full marking on both components;
the equipment manufacturer’s part number;
a technical drawing;
an approved sample; and
clear photographs of the bearing and its installation position.
Cross-references are useful for finding candidate products, but the final match should be checked against dimensions, geometry, and application requirements.
Bore, outside diameter, and width are essential, but tapered roller bearing identification may require additional dimensional checks.
Depending on the application, confirm:
cone and cup widths;
assembled bearing width;
shoulder and abutment dimensions;
chamfer clearance;
shaft and housing seating dimensions; and
any application-specific components or mounting features.
Small differences can affect whether the bearing seats correctly or allows the required assembly setting. This is particularly important in replacement projects where a buyer has an old part but no drawing.
Practical rule: If a supplier is asked to match a worn sample, provide the equipment reference as well. Wear or damage can make measurements from the old part unreliable.
Unlike a simple comparison of catalog dimensions, tapered roller bearing selection often involves an installed setting. Depending on the machine design, an assembly may specify axial endplay or preload.
Endplay is measurable axial movement in an assembled bearing arrangement.
Preload is an intentional internal load applied during assembly.
The correct setting depends on the equipment and installation procedure. Too much endplay may affect stability and alignment. Excessive preload may increase friction and operating temperature. Either condition can shorten service life.
Do not apply one universal preload or endplay value to every tapered roller bearing. Follow the equipment manufacturer’s instructions or an approved engineering specification. In wheel-end maintenance, also follow the specified nut-tightening and verification procedure for that assembly.
Buyers should tell the supplier whether the request concerns:
an individual cone or cup;
a matched bearing set;
a pair of bearings used in an assembly; or
a complete application-specific hub unit.
These are different purchasing requirements.
Tapered roller bearings can be used across many operating speeds, but the permissible speed depends on the specific bearing design, load, setting, and lubrication.
When comparing candidate models, provide:
normal and maximum shaft speed;
continuous or intermittent duty;
expected operating temperature;
grease or oil lubrication; and
any history of overheating.
If a bearing runs hot after replacement, do not assume the bearing material is the only possible cause. Check the mounted setting, lubrication, fits, contamination, and surrounding components as well.
Published speed values should be checked under the relevant operating conditions. A bearing that fits dimensionally may not suit the speed and heat conditions of the machine.
Lubrication helps protect the rolling contacts and manage friction. The correct approach depends on the equipment design.
Grease-lubricated applications require attention to grease type, fill or replenishment method, operating temperature, and service interval.
Oil-lubricated applications require confirmation that oil reaches the bearing as intended and remains suitable at operating temperature.
Buyers should also describe exposure to:
dust and abrasive particles;
water or washdown;
mud;
high ambient temperature; and
vibration or shock.
In many applications, seals are part of the surrounding machine or hub assembly rather than part of an individual open tapered roller bearing. Confirm the complete sealing arrangement instead of assuming that purchasing a new bearing resolves a contamination problem.
The shaft, housing, and bearing seats affect how the installed bearing performs. Damaged or incorrectly sized seats can create problems even when the new bearing is correct.
Before placing a repeat replacement order, investigate any signs of:
looseness or movement at a bearing seat;
fretting marks;
uneven wear;
difficult installation;
abnormal heat; or
recurring bearing damage.
Fit recommendations depend on load direction, which ring rotates relative to the load, operating temperature, and assembly requirements. Use the equipment design or a qualified engineering review to confirm the appropriate fits; do not choose a tighter fit simply because a previous bearing failed.
Confirm the vehicle or equipment application, OEM reference, bearing position, and whether the design uses separate tapered roller bearings or an integrated hub unit. Follow the specified installation and adjustment procedure.
For commercial vehicles and other safety-critical applications, product matching and installation should be verified against the equipment manufacturer’s requirements. A dimensionally similar bearing is not automatically an approved substitute.
Identify the bearing’s role in locating the shaft and supporting gear-generated loads. Confirm oil supply, operating speed, temperature, and the arrangement of other bearings on the shaft. A gearbox may use different bearing types at different positions.
Review continuous-duty loads, shock, vibration, alignment, and maintenance access. If bearings fail repeatedly, examine the complete operating system—including lubrication and mounting—before changing specifications.
Browse the bearing product range at Nexans Bearing to identify possible models, then confirm the requirements for the specific application.
Avoid these sourcing errors:
Ordering from bore and outside diameter alone.
Assuming a cone and cup from different references form a suitable set.
Treating a wheel bearing, bearing set, and hub unit as the same product.
Ignoring the equipment’s endplay or preload specification.
Using a replacement bearing without checking shaft and housing seats.
Overlooking lubricant supply or damaged external seals.
Approving a cross-reference without checking the exact application.
Assuming an individual bearing’s published ratings describe the performance of the complete assembly.
Accurate purchasing starts with a complete reference and a clear description of where the bearing is used.
A useful tapered roller bearing inquiry includes:
Full bearing or OEM reference: Include cone and cup markings if available.
Application: State the machine, vehicle, axle, or gearbox position.
Drawing or photos: Show the bearing and any relevant mounting details.
Dimensions: Provide measured dimensions if the reference is incomplete.
Operating conditions: Include load, speed, temperature, and environment where known.
Assembly requirement: Explain whether you need an individual component, a set, or another specified assembly.
Quantity: State trial quantity and expected repeat demand.
Commercial details: Include packaging, labeling, and delivery destination.
If you do not know the load or mounted setting, say so. The supplier can then identify which details must be confirmed before a technically reliable recommendation is made.
A tapered roller bearing can carry combined radial and axial loads. The allowable load depends on the specific bearing, its arrangement, and operating conditions. A single-row bearing primarily carries axial load in one direction.
Replacement requirements depend on the equipment design, component condition, and the approved bearing combination. Do not assume a separately sourced cone or cup will match an existing component. Confirm the correct references and follow the equipment maintenance guidance.
Endplay is axial movement in an assembled arrangement. Preload is an intentional internal load applied during assembly. The required setting is application-specific and should follow the equipment manufacturer’s instructions or an approved specification.
No. Tapered roller bearings may be components within a wheel-end arrangement, while an integrated hub unit is a different assembly. Confirm exactly which product the vehicle or equipment requires.
An OEM number is a useful starting point. Include the vehicle or equipment application and, if possible, photos or dimensions so the proposed match can be verified before ordering.
Possible causes include incorrect mounted setting, unsuitable lubrication, excessive load, poor fit, or a problem elsewhere in the assembly. Temperature alone does not identify the cause; inspect the complete installation.
Not necessarily. Component geometry, load ratings, bearing arrangement, setting, and application requirements may differ. Verify the complete specification rather than relying on basic dimensions.
Send the full reference, application, required quantity, destination, and any drawing, sample photos, or packaging requirements. Include operating conditions when requesting help with product selection.
Selecting a tapered roller bearing requires more than finding a matching number. The most important questions concern load direction, complete component identification, bearing arrangement, mounted setting, lubrication, and installation conditions.
For wheel hubs, gearboxes, and industrial equipment, begin with the equipment specification and verify the proposed bearing against the real application. Review the Nexans Bearing product catalog, then submit your reference number, drawing, application details, and required quantity through the Nexans Bearing website for product and quotation review.
