Product Description

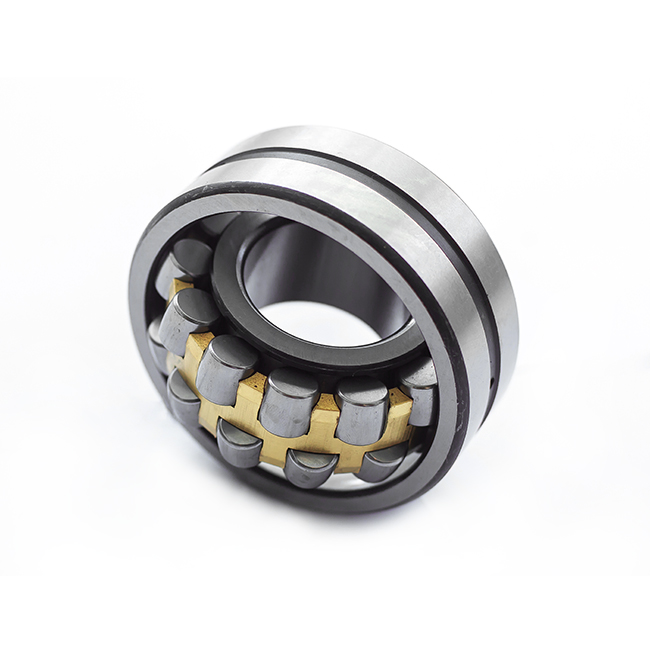

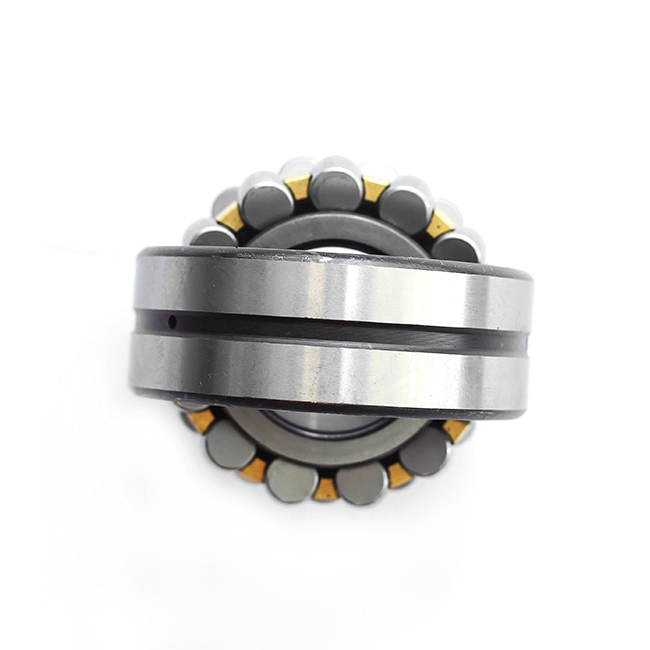

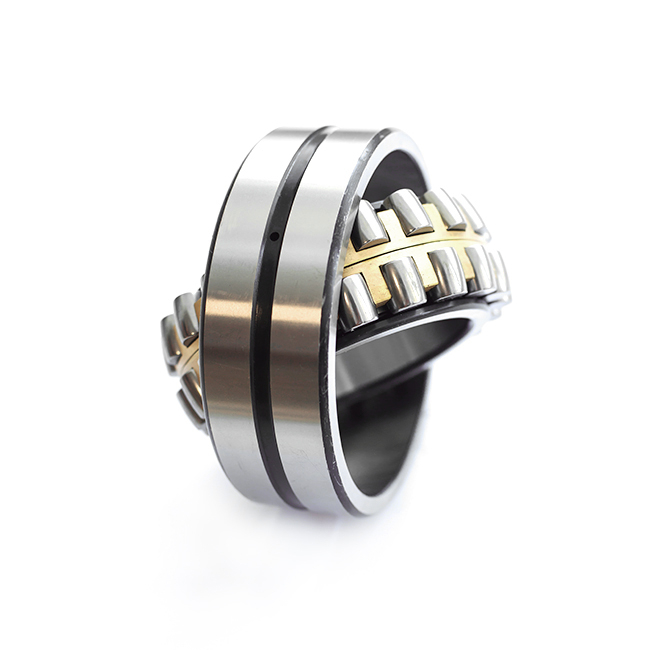

24132W33 24132KW33 160* 270 *109mm Spherical roller bearing
Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a factory near you, there’s no reason to look anywhere else for spherical roller bearings.
| Attributes | Values |
| Part Number | 24132W33 Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 160mm |
| Outer Dia (D) | 270mm |
| Width (B) | 109mm |
| Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
| Dynamic Load Rating (Cr) (Newtons) | 41000 |
| Static Load Rating (Cor) (Newtons) | 51000 |
| Brand | NKS |
| Clearance | C2,C0,C3,C4,C5 |
| Weight | 25.4kg |
| Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
