Product Description
Bearing Name | ||
Bearing item | New | 32313 |
Old | 7613E | |
Dimension(mm) | d | 65 |
D | 140 | |
T | 51 | |
B | 48 | |
C | 39 | |
Weight (kg) | 4.3 | |
Raw Material | Chrome Steel GCR15 | |

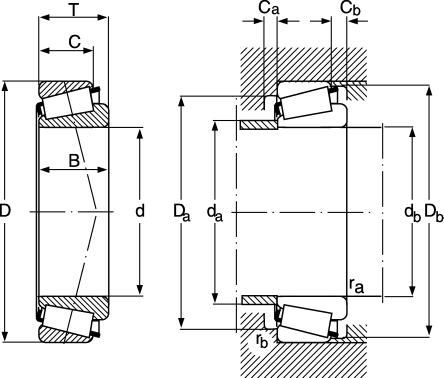

Bearing | Principal Dimensions (mm) | Masskg | |||||
d | D | T | B | C | |||
32303 | 17 | 47 | 20.25 | 19 | 16 | 0.17 | Taper Roller Bearing |
32304 | 20 | 52 | 22.25 | 21 | 18 | 0.23 | Taper Roller Bearing |
32305 | 25 | 62 | 25.25 | 24 | 20 | 0.36 | Taper Roller Bearing |
32306 | 30 | 72 | 28.75 | 27 | 23 | 0.55 | Taper Roller Bearing |
32307 | 35 | 80 | 32.75 | 31 | 25 | 0.73 | Taper Roller Bearing |
32308 | 40 | 90 | 35.25 | 33 | 27 | 1 | Taper Roller Bearing |
32309 | 45 | 100 | 38.25 | 36 | 30 | 1.35 | Taper Roller Bearing |
