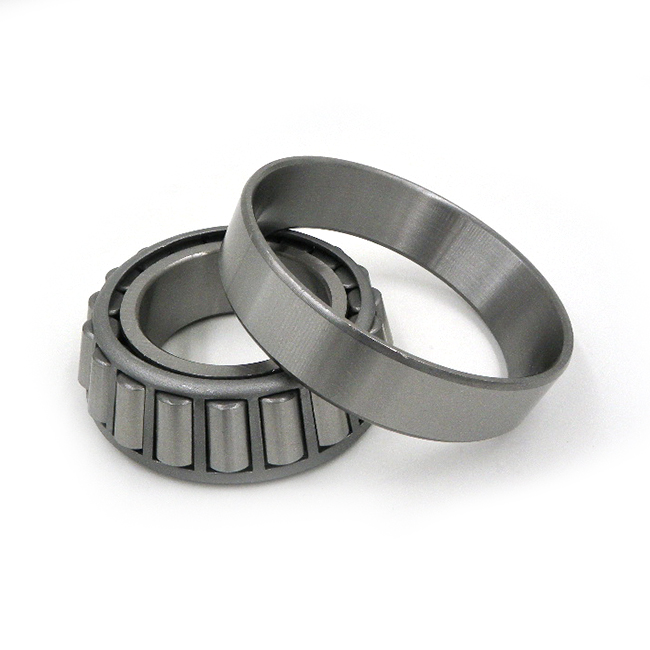

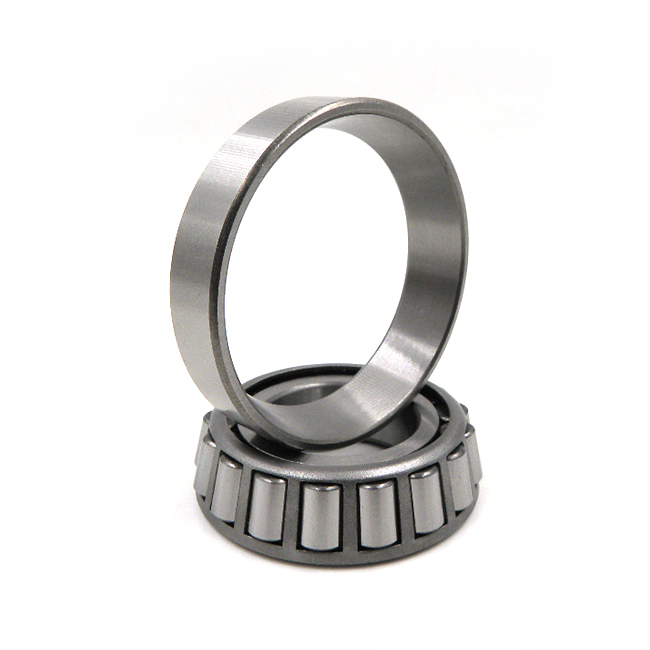

The JHM88540/JHM88513 is a inch tapered roller bearing with a 30.000 mm bore, 72.000 mm outer diameter and 27.783 mm width. Because the roller and raceway surfaces meet on a common apex, it carries combined radial and axial load and keeps the shaft in position under load.
Typical uses are steel plants. Every bearing is dimensionally inspected to ISO 492 before dispatch, and the JHM88540/JHM88513 can be supplied under neutral packing, custom packaging or a full private label set.
Product Description
The JHM88540/JHM88513 is a inch tapered roller bearing with a 30.000 mm bore, 72.000 mm outer diameter and 27.783 mm width. Tapered roller bearings carry combined radial and axial load because the roller and raceway surfaces meet on a common apex, so the rollers stay in true rolling contact along the whole contact length instead of skidding at the ends.
This makes the JHM88540/JHM88513 a practical choice for steel plants, where the shaft has to hold its position under load across a long service interval. If your duty point runs at high speed, under heavy shock load, or in an extreme-temperature environment, confirm the selection with us before ordering — a tapered roller bearing is a locating bearing and its mounting preload has to suit the application.
| Item | Value |
|---|---|
| Bearing number | JHM88540/JHM88513 |
| Type | Inch Tapered Roller Bearing |
| Bore diameter (d) | 30.000 mm |
| Outer diameter (D) | 72.000 mm |
| Width (T) | 27.783 mm |
| Dimension system | Inch-series |
| Brand | Nexans Bearing |
| Item | Detail |
|---|---|
| OEM / ODM | Supported — custom packaging, laser marking on bearing rings, neutral packing and full private label sets |
| MOQ | Varies by product line and packaging type; standard stock items can be supplied in small trial quantities |
| Custom lead time | Negotiable against the confirmed order specification |
| Quotation | Every RFQ answered within 24 hours |
| Item | Detail |
|---|---|
| Quotation | Issued within 24 hours of receiving your RFQ |
| Packing | Neutral packing, custom packaging or full private label sets |
| Trial orders | Standard stock items can be supplied in small trial quantities |
| Tapered roller capacity | Produced on 7 tapered roller bearing production lines inside a 10,000 m² plant |
| Large size stock | Held in a 2,000 m² warehouse for large tapered roller bearings in single row, double row and four row designs |
| Item | Standard / detail |
|---|---|
| Quality management | ISO 9001:2015 |
| Certifications | CE, SGS, CNAS |
| Dimensional inspection | ISO 492 |
| Load rating | ISO 281 |
| Boundary dimensions | ISO 355 (tapered roller bearings) |
| Before dispatch | Every bearing dimensionally inspected and load tested |
| Item | Guidance |
|---|---|
| Mounting | Fit the cone and cup separately; press or heat-fit through the loaded ring and never transmit mounting force through the rollers |
| Axial setting | Tapered roller bearings are locating bearings — set the axial clearance or preload to the value the application calls for |
| Lubrication | Use the grease or oil specified for the duty point; keep the seal and surrounding area clean during fitting |
| Storage | Keep in the original packaging, dry and free from vibration |
| Operating limits | Not intended for extreme temperature or severe shock loading — confirm the duty point before selection |
The JHM88540/JHM88513 has a 30.000 mm bore, a 72.000 mm outer diameter and a 27.783 mm width. It is a inch tapered roller bearing supplied under the Nexans Bearing brand.
MOQ depends on the product line and the packaging type. Standard stock items can be supplied in small trial quantities, so tell us the quantity you need and we will confirm it against current stock.
Yes. We provide custom packaging, laser marking on bearing rings, neutral packing and full private label sets. Lead time and MOQ for custom orders are negotiable.
Dimensional inspection follows ISO 492 and load rating follows ISO 281. Boundary dimensions for tapered roller bearings follow ISO 355. Our quality management system is certified to ISO 9001:2015, and the company holds CE, SGS and CNAS certifications.
Every quotation request is answered within 24 hours. Send your RFQ through the website form or by email and we will come back with price, MOQ and lead time.
Liaocheng Nexans Bearing Co., Ltd. has manufactured bearings in Liaocheng, Shandong, China since 1997. The plant covers 10,000 m² and runs 21 production lines across 13 bearing product lines, including 7 tapered roller bearing production lines and a 2,000 m² warehouse for large tapered roller bearings in single row, double row and four row designs.
Our bearings serve the automotive, industrial machinery, construction machinery and high-end manufacturing sectors. All specifications conform to ISO 15, ISO 355, ISO 492, ISO 281 and ISO 76. If you need the JHM88540/JHM88513 or a comparable tapered roller bearing, send us your specification and we will reply within 24 hours.
