Product Description

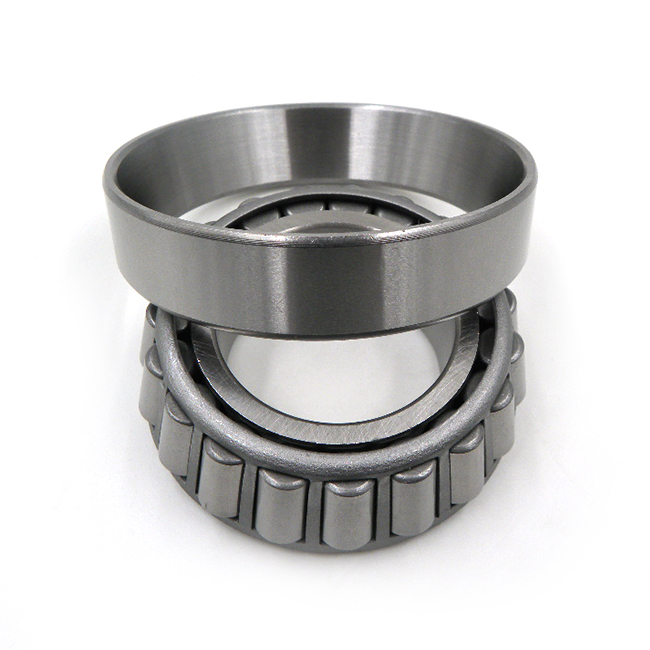

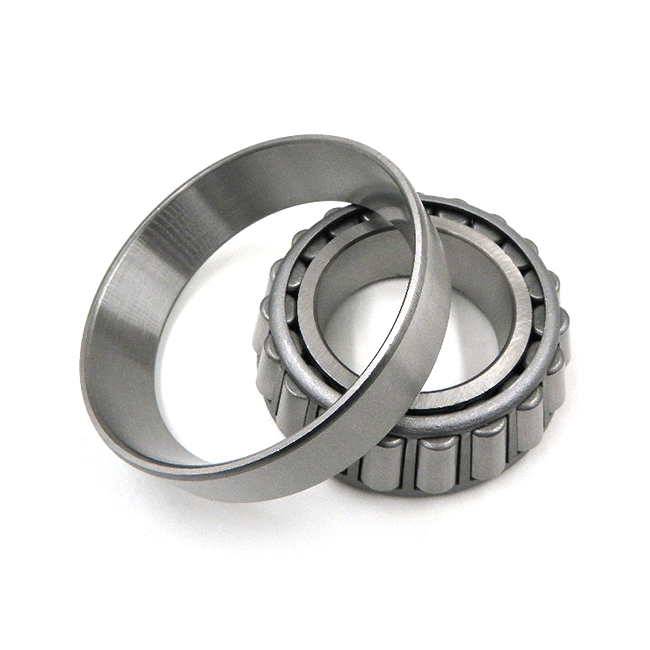

LM742749/LM742710 inch tapered roller bearing 215.900*285.750*46.038 mm
LM742749/LM742710 Bearings have rubber seals that contact both the inner and outer race of the bearing; this prevents moisture and dust from damaging the bearing.
LM742749/LM742710 Sealed Bearing is a popular size that could be used in many applications, LM742749/LM742710 Bearings is made of Chrome Steel and the bearing is pre-lubricated with grease.
| Attributes | Values |
| Part Number | LM742749/LM742710 Bearing |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 215.900mm |
| Outer Dia (D) | 285.750mm |
| Width (B) | 46.038mm |
| Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
| inner ring (T) | 46.038mm |
| out ring (C) | 34.925mm |
| Brand | NKS |
| Clearance | C2,C0,C3,C4,C5 |
| Weight (kg) (grams) | 7.54kg |
| Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
