Product Description

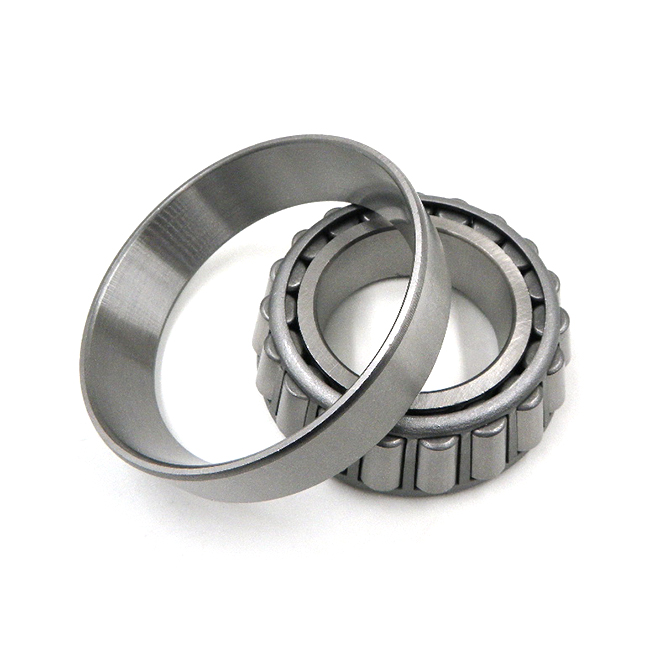

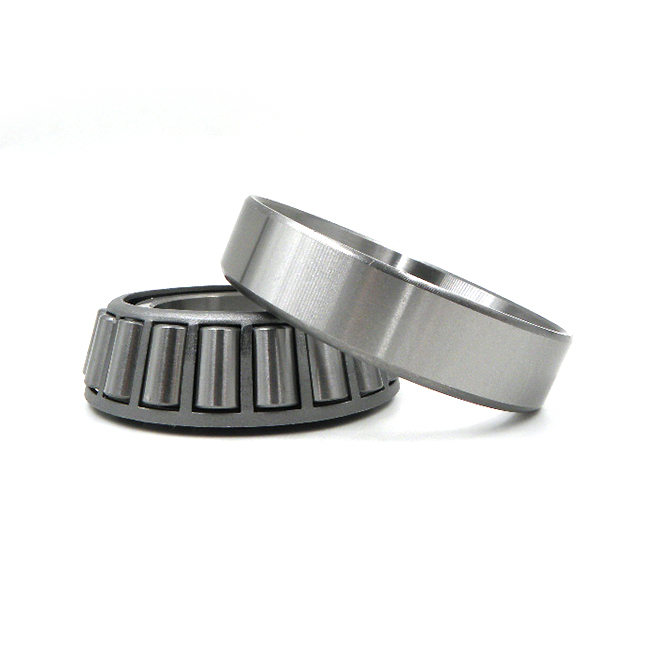

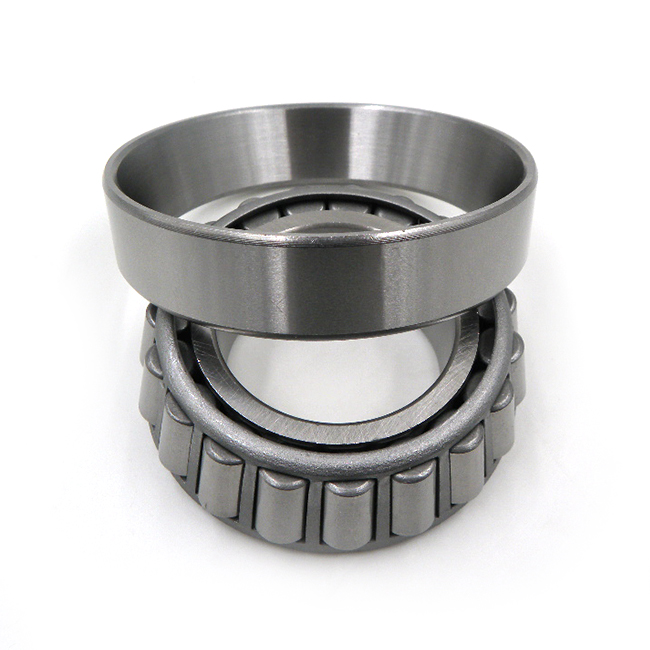

M276449/M276410 inch tapered roller bearing 536.575*761.873*146.050 mm
M276449/M276410 Bearings have rubber seals that contact both the inner and outer race of the bearing; this prevents moisture and dust from damaging the bearing.
M276449/M276410 Sealed Bearing is a popular size that could be used in many applications, M276449/M276410 Bearings is made of Chrome Steel and the bearing is pre-lubricated with grease.
Attributes | Values |
Part Number | M276449/m276410 Bearing |
Bearing Type | Shielded or Seal and Open are available. |
Bore Dia (d) | 536.575mm |
Outer Dia (D) | 76.183mm |
Width (B) | 146.050mm |
Material | 52100, Chrome steel Gcr15,683/XVIII,100Cr16,SUJ2,SKF3 |
inner ring (T) | 146.050mm |
out ring (C) | 114.300mm |
Brand | NKS |
Clearance | C2,C0,C3,C4,C5 |
Weight (kg) (grams) | 202.61kg |
Note | ABEC Grades 1,3,5,7,9.DIN620 P0,P6,P5,P4,P2 |
